Coaxial optical MEMS switch SC
- Momentary
- Up to 1x48 ports configuration
- Specialty or PM Fibers
- Hermetically sealed housing
- Hermetic sealing
- The hermetically sealed MEMS and the laser welded fiber collimator guarantee broad temperature range and superior long-term stability.
- Low insertion loss
- Our coaxial MEMS switches introduce minimal insertion loss below 1,2dB, ensuring that the signal strength remains largely intact during transmission.
- High reliability
- Our coaxial MEMS switches are renowned for their high reliability and long operational lifetimes. The coaxial MEMS switch meets Telcordia 1221 reliability standards and RoHS requirements 2015/863/EU.
Sercalo’s fiber optic SC1xN switches are bidirectional opto-mechanical switches based on a coaxial design where a single MEMS mirror redirects light from a common fiber to one of N ports. The MEMS technology results in low insertion loss and low cross-talk between channels while keeping a constant switching performance over life. The SC1xN coaxial design offers minimal footprint in high port count configurations.
Variants for Coaxial optical MEMS switches SC

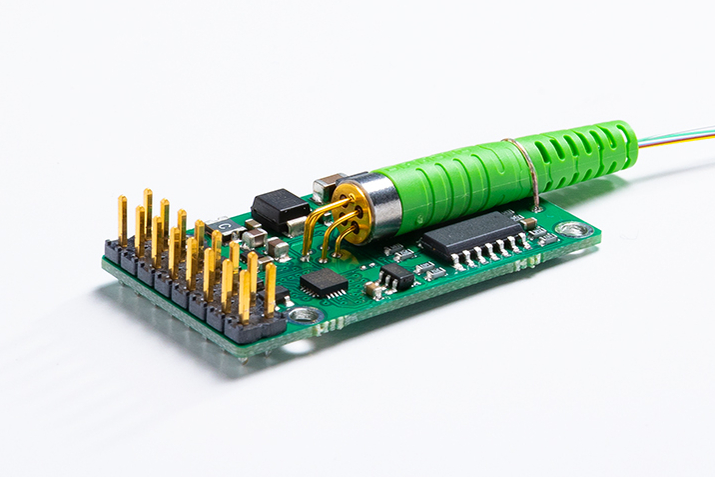

SC1XN
Coaxial optical switch with driver
Sercalo’s SC1xN series are miniature, bidirectional optical switches utilizing Micro-Electro-Mechanical Systems (MEMS) technology. These switches employ a coaxial design where a single micromirror redirects light from a common input fiber to one of several output ports (designated by the "N" in 1xN).

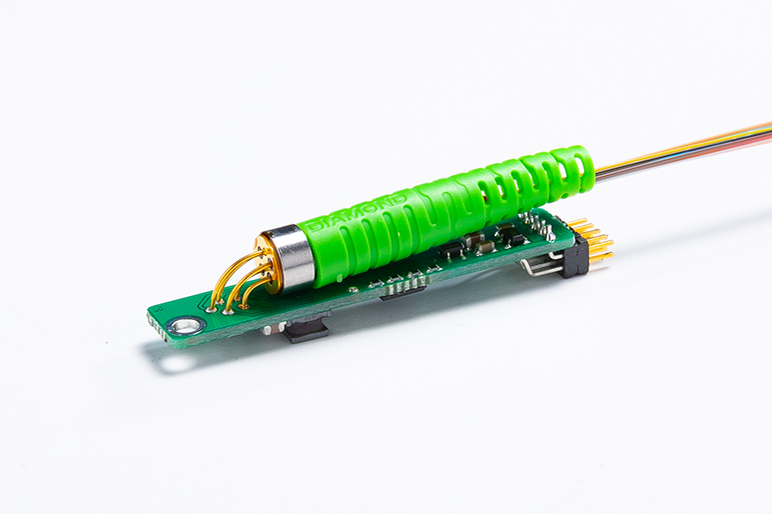

MSC1XN
Coaxial optical MEMS switch with miniaturized driver
Sercalo’s mSC1xN series takes fiber optic switching to a new level of miniaturization. These miniature coaxial optical MEMS switches integrate a driver chip for seamless control, making them ideal for applications demanding both high performance and compact size.

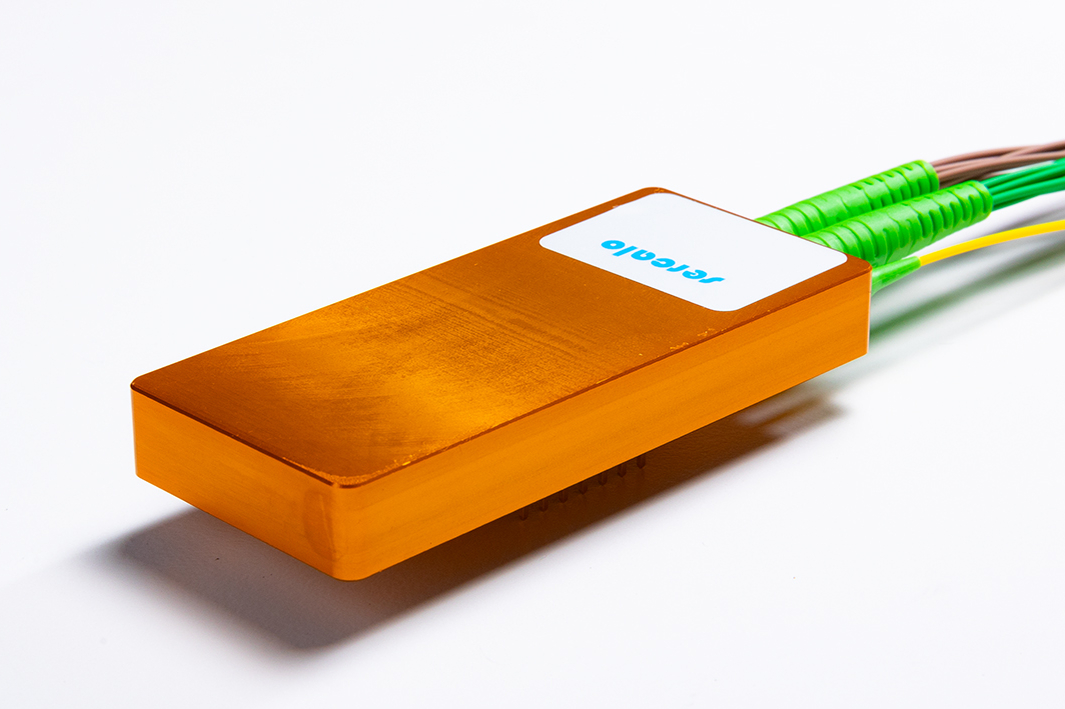

RSC1XN coaxial optical MEMS switch
Industry compatible coaxial optical switch
For applications requiring reliable optical switching in harsh environments, Sercalo’s rSC1xN series stands out with its robust and versatile housing featuring industry pinout. This coaxial optical MEMS switch employs a single micromirror to redirect light from a common fiber to one of several output ports, offering efficient signal routing.

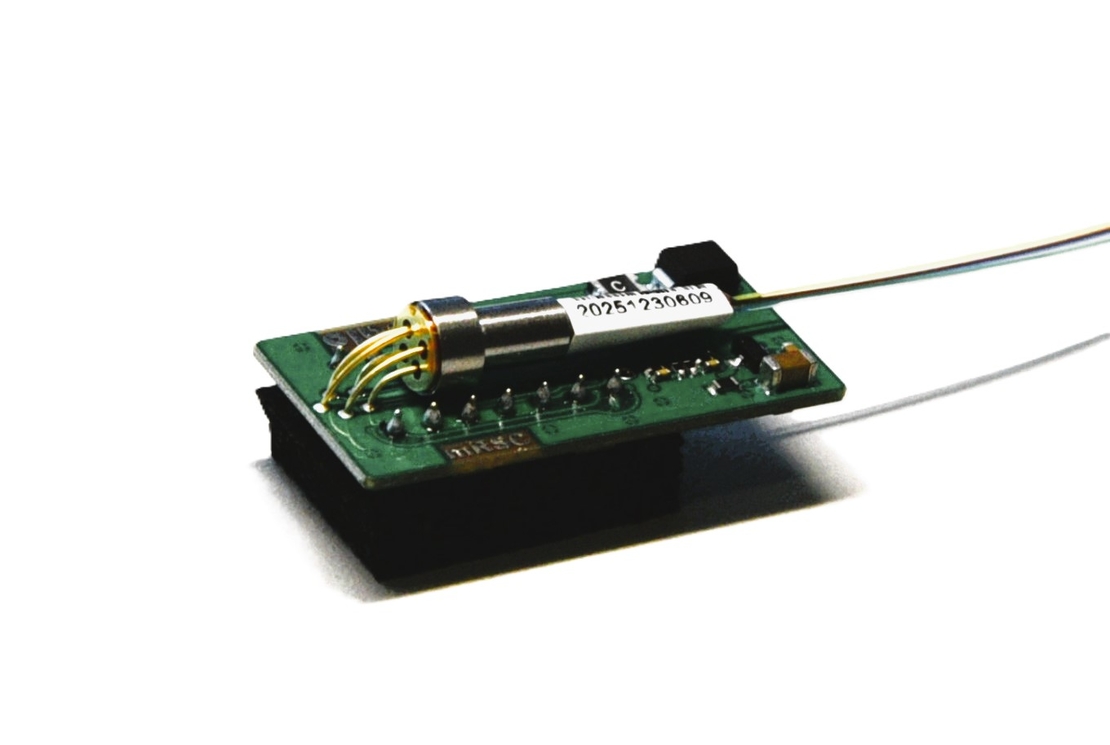

mRSC1XN coaxial optical MEMS switch
Industry compatible coaxial optical switch
The mRSC comes with an industry compatible pinout. It features the coaxial SC switching module used for the SC, mSC and RSC variants. Unlike the RSC, the switch has no external housing while featuring a PCB with reduced foot print.
Ordering information for Coaxial optical MEMS switches SC
Please use the product configurator below to select available options for the coaxial optical MEMS switches SC product line and/or leave us a message with the contact form. If you are not sure about the exact configuration we will reply to discuss the best options with you. Please note that for technical reasons certain configurations are not possible. We also create custom designs according to your specific requirements outside of our standard product line.
