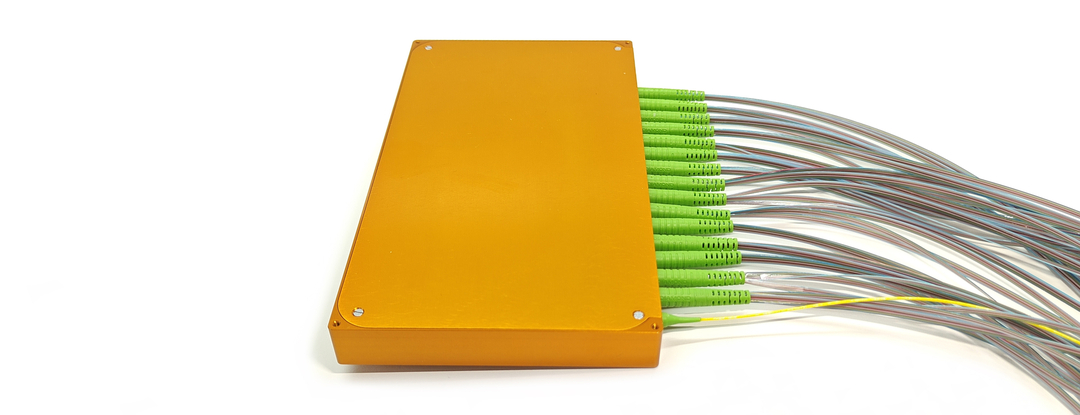

Matrix optical MEMS switch SCBU

  • Coaxial design
  • 16x16 or 1x1116 ports
  • UART, I2C/SMBus and USB interfaces
  • Custom networks available



Image -
High switching speed
Our matrix MEMS switches exhibit exceptional switching speeds, capable of rapidly directing light beams with minimal latency.
High port count
Our modulable matrix MEMS switches is adaptable to operate as a 16x16 or up to 1x1116.
Low insertion loss
Our matrix MEMS switches introduce minimal insertion loss, ensuring that the signal strength remains largely intact during transmission.
High reliability
Our matrix MEMS switches are renowned for their high reliability and long operational lifetimes.

The SCBU NxM Matrix optical MEMS switch is a bidirectional opto mechanical switch based on coaxial design where a matrix of MEMS mirrors redirects light from N inputs to M outputs. The optical networks can be based on a strictly nonblocking matrix (from 4x4 up to 16x16 ports) or on a tree structure (up to 1x1116 ports). The miniature package withstands rugged environments and is well suited for direct mounting on printed circuit boards. The underlying MEMS technology of the Matrix optical MEMS switch results in low insertion loss and low crosstalk between channels while keeping a constant switching performance over life. The hermetically sealed MEMS and the laser welded collimators of the Matrix optical MEMS switch guarantee broad temperature range and superior long term stability. The Matrix optical MEMS switch SCBU is designed to conform to Telcordia 1221 reliability standards. No epoxy is present in the optical path.

>

Ordering information for Matrix optical MEMS switches SCBU

Please use the product configurator below to select available options for the Matrix optical MEMS switches SCBU product line and/or leave us a message with the contact form. If you are not sure about the exact configuration we will reply to discuss the best options with you. Please note that for technical reasons certain configurations are not possible. We also create custom designs according to your specific requirements outside of our standard product line.

Your reference number :

option image

Sercalo’s optical MEMS components are entirely made in
house.
