Fast optical MEMS switches SW
- Fast latching or momentary
- 2x2 or 1xN up to 1x32 port configuration
- Single/multimode and specialty Fiber
- Ruggedized housing
- High switching speed
- Our fast optical MEMS switches exhibit exceptional switching speeds (typically 0.5ms), capable of rapidly directing light beams with minimal latency.
- Low power consumption
- Our fast optical MEMS switches operate with minimal power consumption, typically at 5 mW (max 25mw), leading to energy-efficient operation and reduced heat generation.
- Low insertion loss
- Our fast optical MEMS switches introduce minimal insertion loss below 1dB, ensuring that the signal strength remains largely intact during transmission.
- High Reliability
- Our fast optical MEMS switches are renowned for their high reliability and long operational lifetime.
Sercalo's SW/SL devices are optical MEMS switches for fiber optic communication systems and submodules. The SW/SL achieve excellent repeatability and reliability. The highly reliable opto-mechanical MEMS switch passes Telcordia GR1221 qualification.
The SW switch is available as latching variant (SL), where a bistable suspension mechanism keeps the last selected state in power off. The momentary (non latching) type is not recommended for new designs.
Variants for Fast optical MEMS switches SW

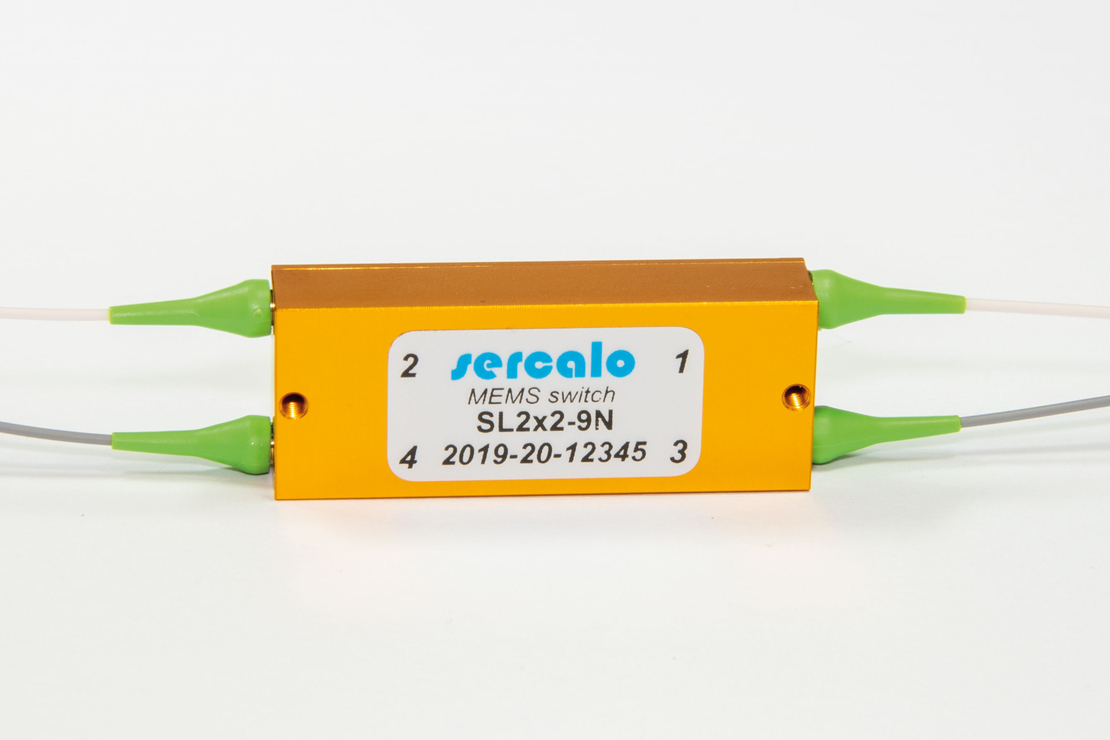

SL
Fast latching optical MEMS switch
The SL series are opto-mechanical latching switches for the most demanding applications in fiber optic communication networks such as Protection Switching, Reconfiguration and WDM.
The switch mechanism is latching and has a very fast response time below 1 ms and only 0.5 dB insertion loss. The miniature package withstands rugged environments and is well suited for direct mounting on printed circuit boards. The switch is qualified according to Telcordia GR1221. An momentary (non latching) SN variant of this switch is available on demand.
SW
Fast momentary optical MEMS switch
The SW series are our fastest MEMS switches and achieve a switching time below 1ms and cycling rates up to 1kHz. These switches are available in single mode and multimode variants. Typical applications are are high end instrumentation, airplanes and biomedical devices.
Ordering information for Fast optical MEMS switches SW/SL
Please use the product configurator below to select available options for the fast optical MEMS switches SW/SL product line and/or leave us a message with the contact form. If you are not sure about the exact configuration we will reply to discuss the best options with you. Please note that for technical reasons certain configurations are not possible. We also create custom designs according to your specific requirements outside of our standard product line.
